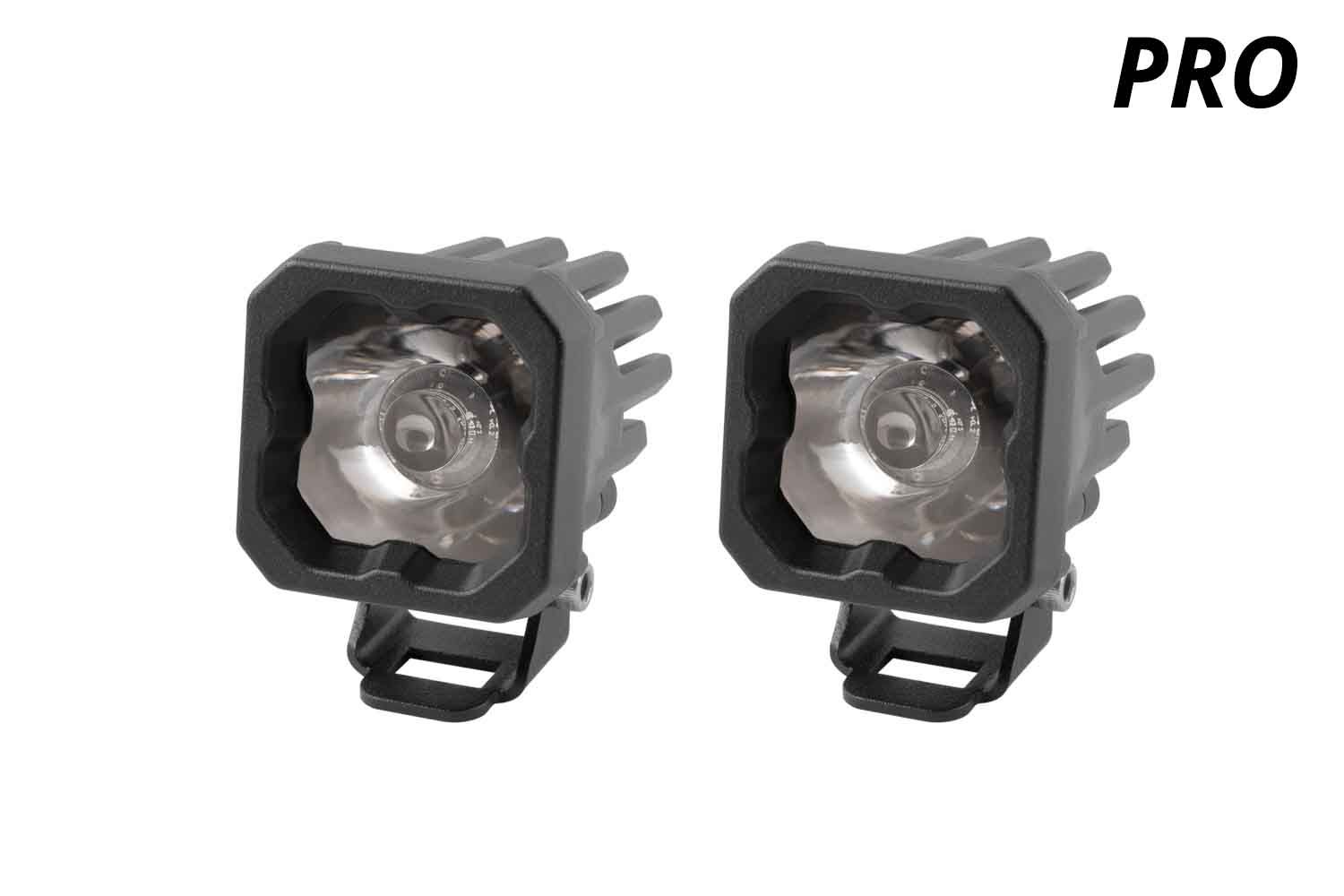

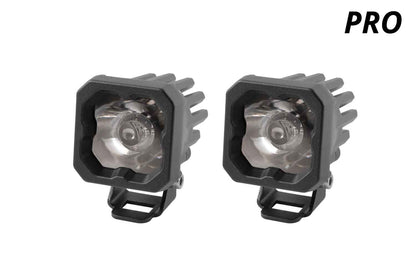

Diode Dynamics Stage Series C1 LED Pods (SSC1) – Pair

Ultra-Compact Single-LED Pods | Custom TIR Optics & Dual-Function Backlighting

Maximum performance, minimal footprint. The Diode Dynamics Stage Series C1 LED Pod (SSC1) packs the high-intensity punch of a full-sized light bar into an ultra-compact, single-LED housing. Engineered for ultimate versatility, these pods fit comfortably into tight spaces where traditional auxiliary lights simply cannot reach.

Whether you need auxiliary ditch lights for your truck, compact fog lighting for your car, flush-mounted reverse lights for your bumper, or sleek trail lighting for your motorcycle or UTV, the SSC1 delivers unmatched efficiency and output.

Key Features & Advanced Engineering

• Patent-Pending Custom TIR Optics: Traditional reflectors lose over 10% of their light output to internal glare and scatter. The SSC1’s custom-engineered Total Internal Reflection (TIR) optic serves as both the internal lens and the outer optic, capturing and directing 100% of the light exactly where you need it.

• High-Intensity 10-Watt LED Chips: Coupled with high-power emitters, our TIR technology generates a much higher candela rating than standard pods utilizing basic reflectors and separate outer lenses.

• Dual-Function Accent Backlighting: Features a distinctive integrated backlight in your choice of Amber or Red. This accent light fully illuminates the TIR optic when your main beams are off, giving your vehicle a unique custom look on the road.

• Pin-Fin Aluminum Heatsink: Designed with a structural pin-fin layout to ensure superior thermal dissipation, protecting the internal LED circuitry during prolonged continuous runtime.

• Interchangeable Lenses: Adapt your setup on the fly. We offer easy-to-swap replacement lenses, allowing you to change your beam pattern or color profile at any time in your own garage.

• USA Quality & Architecture: Proudly designed, torture-tested, and directly assembled in the USA by Diode Dynamics—one of the most trusted names in automotive LED lighting.

Functional Beam Patterns

All Stage Series beam options are built using precise optical simulation modeling to shape light into highly functional, targeted patterns:

• Flood Pattern (50° x 50° Spread): Perfect for backup lighting, scene illumination, roof racks, and utility trailers. Rather than using a generic diffused lens, it incorporates specialized pillow optics on the lens surface for an even, uniform spread.

• Wide Pattern (50° Horizontal x 20° Vertical): Designed for general off-road driving illumination. It punches light down the trail while throwing a wide spread to illuminate shoulders, ditches, and terrain hazards.

• Spot Pattern (7° Focused Beam): An unmodified, raw beam directly from the TIR optic. It delivers a laser-focused, long-range light throw to illuminate obstacles far into the distance. (Note: The Pro Spot option uses a larger emitter for higher total power with a slightly wider spread).

Premium Color & Power Configurations

1. White vs. Selective Yellow

• Cool White (6000K): A true, crisp cool white output designed to perfectly match most modern factory LED headlight systems.

• Selective Yellow (3000K): A rich yellow output that cuts through airborne particles to provide high contrast in severe weather like heavy fog, dust, snow, or rain.

2. Sport vs. Pro Power Levels

• Sport Series: Utilizes high-intensity emitters optimized for lower power consumption while still vastly outperforming the competition.

• Pro Series: Cranks up the total power output for drivers demanding maximum lux, raw lumen throw, and ground illumination.

Product Specifications

Feature	Details

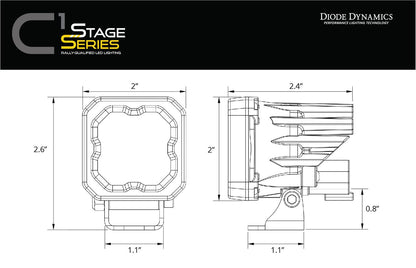

Form Factor	Ultra-Compact Single-LED (Standard or Flush-Mount)
Power Consumption	High-Intensity 10-Watt LED Chip Structure
Backlight Colors	Available in Distinctive Amber or Red
Connector Style	Integrated Weatherproof DT-Type Deutsch Connector
Operational Limits	Extensive Environmental Testing from -40°F to 185°F
Standards Compliance	Extensively vibration, moisture, and corrosion-tested to SAE standards

Mounting & Wiring Versatility

The SSC1 can be integrated anywhere. Choose from traditional bracket mounts or seamless flush-mount bumper configurations. Want a unique mounting style? Our custom adapter kits let you secure these pods directly to any standard GoPro-style mounting point.

Wiring is made effortless via the molded DT-style Deutsch connector on the back casing. Use the included 6-inch bare pigtails for custom setups, or hook them directly into any off-the-shelf Deutsch DT wire harness.

In The Box

• Two (2) Stage Series C1 LED Pods

• Two (2) Deutsch-Style Wire Pigtails

• Two (2) Mounting Brackets and Assembly Hardware

• Warranty: Premium Lifetime Warranty Coverage

• Guarantee: 100% Satisfaction Guarantee

NOTE - Wiring is not included and needs to be purchased separately

Maximize your visibility and customize your vehicle’s stance. Order your Diode Dynamics Stage Series C1 LED Pods on Bikenbiker today!

Country of Origin: United States of America
Generic Name: Auxiliary Lights
Quantity: 2N
Country of Import: United States of America
Warranty: 5 Years Limited Warranty
Best Use Before: 10 years from date of manufacture
