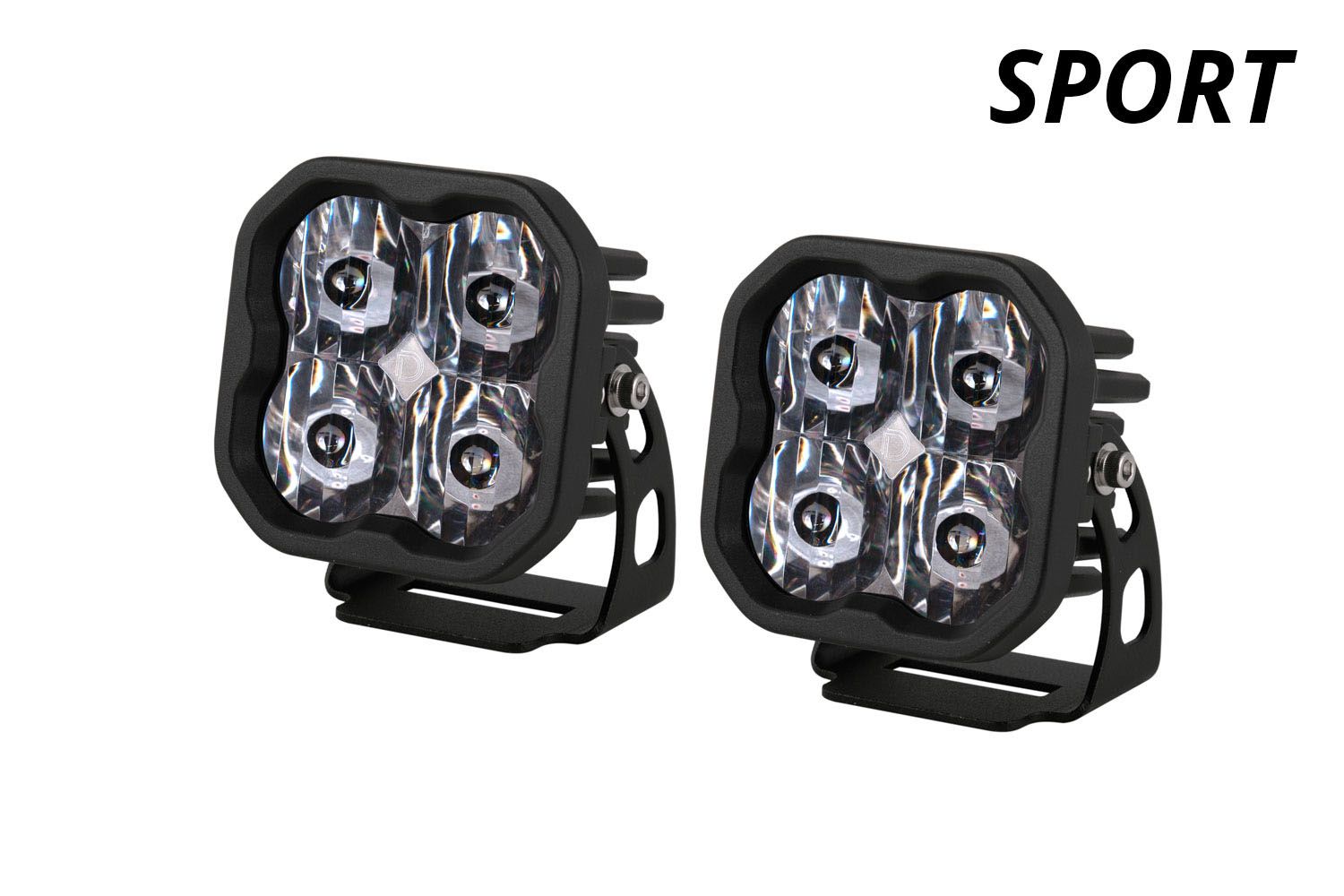

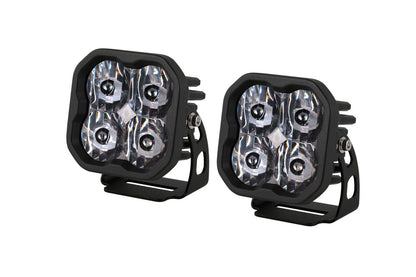

Diode Dynamics SS3 3-Inch LED Pods – Pair

High-Intensity Auxiliary LED Lights | Street-Legal SAE Compliance | Premium TIR Optics

Take command of the dark with unmatched trail and highway illumination. The Diode Dynamics SS3 3-Inch LED Pods deliver higher output intensity than any other 3-inch auxiliary light on the market. Designed for maximum functionality and real-world durability, these compact pods combine custom-engineered optics with highly useful, simulated beam patterns to completely transform your night-driving experience.

Whether you are building a rugged off-road overland rig or upgrading your vehicle's factory fog lamps for safer daily driving, the SS3 series provides powerful, focused light right where you need it most.

Key Features & Advanced Engineering

• Patent-Pending Custom TIR Optics: Traditional reflectors and simple lenses lose light internally and to glare, meaning not all of the light shines on target. The SS3’s custom-molded Total Internal Reflection (TIR) optic serves as both the internal optical matrix and the main outer lens. This advanced design collects 100% of the light from the high-intensity LED chips and directs it exactly on target, drastically reducing glare and maximizing total efficiency. While other options on the market lose as much as 10% of the light output shining through an outer lens, the integrated lens design of the SS3 ensures significantly greater efficiency and light output.

• Dual-Function Accent Backlighting: Stand out from the crowd with a distinctive backlight feature available in your choice of Amber or Red. This integrated backlight gives you an additional accent light alongside the main beam. Unlike small indicator LEDs used by competitors, the SS3 backlight fully illuminates the entire TIR optic to create a bold, modern, and unique look when your main beams are turned off.

• Durable Aluminum Construction: Built to handle the absolute toughest environments, the heavy-duty aluminum housing features a durable powder-coated construction that protects your lights against the elements.

• Weatherproof Deutsch Connections: Features a custom-molded, integrated DT-type Deutsch-style connector on the rear casing. Each pair comes with a 6-inch pigtail with bare leads for a clean, reliable, and adaptable installation.

• Engineered & Assembled in the USA: Backed by over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly engineer and assemble our products in the United States, allowing for higher quality, premium performance, and access to the newest and brightest LED technology.

Multi-Functional, Optically Modeled Beam Patterns

Every Stage Series beam pattern option is designed using advanced optical simulation modeling to shape the output into a highly functional field of view:

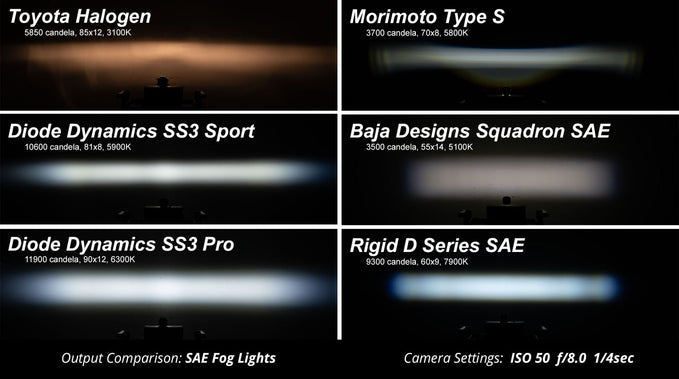

• SAE Fog Pattern: Utilizing our distinctive FineLine optic design, this pattern delivers an extremely wide field of view with high-intensity output over an entire 80-degree spread. It serves as an elite upgrade for any factory foglamp, completely illuminating the immediate area in front of your vehicle.

• SAE Driving Pattern: Engineered to supplement your high beams, making it perfect for general highway illumination. Rather than a traditional narrow "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

• Combo Pattern: The ultimate all-rounder for downrange distance and wide peripheral coverage. This configuration shines light downrange in a focused, rectangular 65x25 degree pattern by seamlessly blending a flood optic on one side and a driving optic on the other.

• Flood Pattern (60° x 60° Spread): Designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface to provide a true optically designed spread. It is perfect to use as a backup light, for trailers, worksites, or lighting up anything at low speeds.



• Spot Pattern (6° Focused Beam): An unmodified pattern casting light directly from the TIR optic. The result is a highly focused 6-degree beam of light perfect for directing light far into the distance. Pushing out an incredible 151,000 candela, the SS3 Sport shines a half-mile away from a compact 3-inch package. (Note: The Pro Spot uses a slightly larger emitter which spreads the light output more than the Sport Spot, resulting in a lower candela and lux rating even at a higher power level).

Street-Legal On-Road Performance: When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standards as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standards as a Foglamp for legal on-road use. For states that require them, optional snap-on covers are available in a variety of colors to keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way. Please check your local laws and regulations for aiming, installation, and applicability.



Choose Your Color & Performance Tier

Cool White vs. Selective Yellow

• Cool White (6000K): A crisp 6000K color temperature that delivers a true cool white output, seamlessly matching most factory LED lighting arrays.

• Selective Yellow (3000K): A rich 3000K color temperature that is great for high contrast in poor weather, helping your vision cut through inclement environments like heavy fog, rain, snow, or dust. We also offer replacement lenses that allow you to easily change the color or optic layout of your SS3 Pods at any time.

Sport, Pro, or Max Power Levels

Stage Series LED pods are available at three different power levels, all utilizing high-intensity LED emitters and TIR optics for unmatched focus and overall output:

• Sport Series: Uses high-intensity LEDs to deliver incredible performance and the best bang for the buck you'll find.

• Pro Series: Steps things up in a big way, delivering double the total power of the Sport model.

• Max Series: Designed with cutting-edge automotive emitters for both high power and extreme intensity. This brand-new technology comes at a cost, but if you are looking for the absolute best in premium lighting performance, the SS3 Max is the definitive answer.

Simple Connections & Proven Reliability

Wiring your new pod setup is completely hassle-free. All SS3 LED pods feature an integrated Deutsch-style connector on the back and come with a 6-inch pigtail with bare leads. For installation, you can wire them yourself, use an off-the-shelf Deutsch DT-sized wire harness, or select an optional Diode Dynamics wire harness. Our Light Duty Dual Output Harness can power up to two SS3 pods, while our Heavy Duty Dual Output Harness (paired with a Deutsch DT Splitter) is recommended if you look to power more than two pods at once. To power the accent backlight, simply use the included harness to tap into your desired vehicle power function.

Built to survive the elements, Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F. They undergo rigorous vibration, moisture intrusion, and corrosion testing completed to strict SAE standards—just like factory components. They have been thoroughly put to the test on-road and off-road by racers and enthusiasts alike.

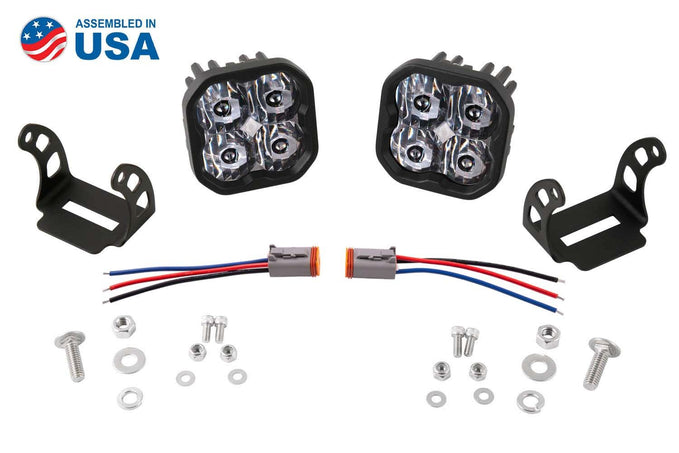

In The Box

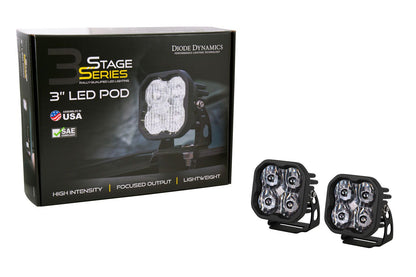

• Two (2) Stage Series SS3 3-Inch LED Pods

• Two (2) Deutsch-Style Wire Pigtails

• Two (2) Heavy-Duty Mounting Brackets and Assembly Hardware

• Quantity: Two (2) Pods per Pair

• Warranty: Premium Lifetime Warranty Protection

• Guarantee: 100% Satisfaction Guarantee

NOTE - Wiring is not included and needs to be purchased separately

Transform your night driving and secure premium lighting performance. Upgrade your ride with the SS3 LED Pods by Diode Dynamics from Bikenbiker today!

Country of Origin: United States of America
Generic Name: Auxiliary Lights
Quantity: 2N
Country of Import: United States of America
Warranty: 5 Years Limited Warranty
Best Use Before: 10 years from date of manufacture
Importer Address: CRG Holdings 5-9-262/62, Kukatpally Main Road, Medchal Malkajgiri, Hyderabad, Telangana, 500072 Customer Service Manager (at above address) Phone: +91 844 844 9050 Email: customercare@bikenbiker.com
