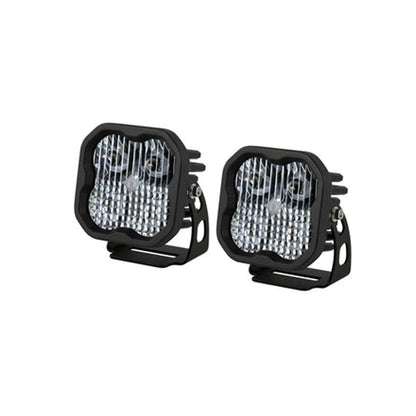

Diode Dynamics SS3 3-Inch LED Pods – Pair

High-Intensity Auxiliary LED Lights | Street-Legal SAE Compliance | Premium TIR Optics

Take command of the dark with unmatched trail and highway illumination. The Diode Dynamics SS3 3-Inch LED Pods deliver higher output intensity than any other 3-inch auxiliary light on the market. Designed for maximum functionality and real-world durability, these compact pods combine custom-engineered optics with highly useful, simulated beam patterns to completely transform your night-driving experience.

Whether you are building a rugged off-road overland rig or upgrading your vehicle's factory fog lamps for safer daily driving, the SS3 series provides powerful, focused light right where you need it most.

Key Features & Advanced Engineering

• Patent-Pending Custom TIR Optics: Traditional reflectors and simple lenses lose up to 10% of their light output to internal scatter and glare. The SS3’s custom-molded Total Internal Reflection (TIR) optic serves as both the internal optical matrix and the main outer lens. This advanced design collects 100% of the light from the high-intensity LED chips and directs it exactly on target, drastically reducing glare and maximizing total efficiency.

• Dual-Function Accent Backlighting: Stand out from the crowd with an integrated backlight feature available in your choice of Amber or Red. Unlike small indicator LEDs used by competitors, the SS3 backlight fully illuminates the entire TIR optic to create a bold, modern, and unique look when your main beams are turned off.

• Durable Aluminum Construction: Built to handle the absolute toughest environments, the heavy-duty aluminum housing is finished with an industrial powder coating that strongly resists chipping, salt, corrosion, and UV fading.

• Weatherproof Deutsch Connections: Features a custom-molded DT-type Deutsch-style connector on the rear casing. Each pair comes with 6-inch bare-lead pigtails for a clean, reliable, and adaptable installation.

• Engineered & Assembled in the USA: Proudly designed, directly developed, and assembled in the United States using the newest and brightest automotive LED technology.

Multi-Functional, Optically Modeled Beam Patterns

Every Stage Series beam pattern is designed using advanced optical simulation modeling to shape the light throw into distinct, highly functional fields of view:

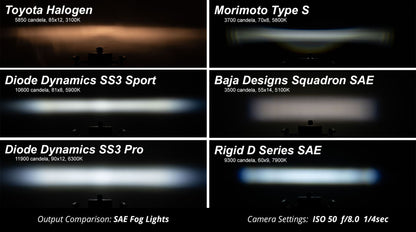

• SAE Fog Pattern: Utilizing our distinctive FineLine optic layout, this pattern delivers an extremely wide field of view with high-intensity output over an entire 80-degree spread. It serves as a street-legal upgrade for factory fog lamps, completely illuminating the immediate road surface in front of your vehicle.

• SAE Driving Pattern: Engineered to safely supplement your high beams for general high-speed illumination. Rather than a narrow, unpredictable "spot," it shines in an 18x8 degree rectangular spread to provide just enough width to fully illuminate the road ahead at high speeds.

• Combo Pattern: The ultimate all-rounder for downrange performance and wide peripheral coverage. This configuration features a flood optic on one side and a driving optic on the other, creating a focused, rectangular 65x25 degree field of view.

• Flood Pattern (60° x 60° Spread): Perfect for worksites, trailers, backing down a ramp, or low-speed trail navigation. It utilizes advanced pillow optics on the outer lens surface to provide a beautifully uniform, evenly distributed grid of light rather than a crude, heavily diffused spotlight.

• Spot Pattern (6° Focused Beam): An unmodified, raw beam casting focused light directly from the TIR optic straight into the distance. In the Sport configuration, it pushes out an incredible 151,000 candela to throw light a half-mile away from a compact 3-inch package. (Note: The Pro Spot uses a slightly larger emitter which spreads the light output more than the Sport Spot, resulting in a wider spread).

Street-Legal On-Road Performance: When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standards as an auxiliary high beam, and the Fog pattern meets SAE J583 standards as a legal fog lamp. Optional snap-on covers are also available in a variety of colors to keep your lenses clean and meet local state compliance laws.

Choose Your Color & Performance Tier

Cool White vs. Selective Yellow

• Cool White (6000K): A crisp, true cool white output designed to perfectly match modern factory LED lighting arrays.

• Selective Yellow (3000K): A rich, deep yellow output that provides excellent high contrast in poor weather, helping your vision cut through heavy fog, rain, snow, or dust storms.

Sport, Pro, or Max Power Levels

• Sport Series: Uses high-intensity LEDs to deliver incredible performance and the best bang for the buck you'll find.

• Pro Series: Steps your illumination up in a massive way, delivering double the total power of the Sport model.

• Max Series: Engineered with cutting-edge, specialized automotive emitters to deliver extreme intensity and jaw-dropping raw output. If you are looking for the absolute best in premium lighting performance, the SS3 Max is the ultimate answer.

Product Specifications

Feature	Details

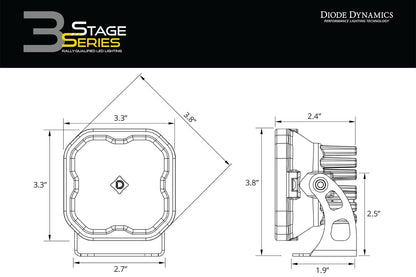

Housing Profile	Compact 3-Inch Pod Housing
Housing Material	Heavy-Duty Powder-Coated Aluminum Construction
Optic Matrix	Custom-Engineered Total Internal Reflection (TIR) Lens
Connector Type	Integrated Weatherproof DT-Type Deutsch Connector
Operational Limits	Extensively Torture-Tested from -40°F to 185°F
Testing Standards	SAE Compliant for Vibration, Moisture Intrusion, and Corrosion

Simple Connections & Proven Reliability

Wiring your new pod setup is completely hassle-free. You can easily wire the pods yourself using the included bare pigtails, connect them to an off-the-shelf Deutsch DT-sized wire harness, or select an optional Diode Dynamics wiring harness. To power the accent backlight, simply use the included harness to tap into your desired vehicle power function.

Built to survive the elements, Stage Series lighting is rigorously tested against severe vibrations, moisture intrusion, and harsh weather cycles right alongside professional racers and off-road enthusiasts.

In The Box

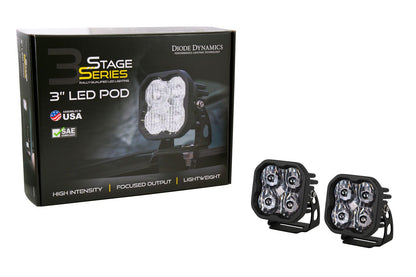

• Two (2) Stage Series SS3 3-Inch LED Pods

• Two (2) Deutsch-Style Wire Pigtails

• Two (2) Heavy-Duty Mounting Brackets and Assembly Hardware

• Warranty: Premium Lifetime Warranty Protection

• Guarantee: 100% Satisfaction Guarantee

NOTE: Wiring is not included and needs to be purchased separately

Transform your night driving and secure premium lighting performance. Order your Diode Dynamics SS3 LED Pods from Bikenbiker today!

Country of Origin: United States of America
Generic Name: Auxiliary Lights
Quantity: 2N
Country of Import: United States of America
Warranty: 5 years limited warranty
Best Use Before: 10 years from date of manufacture
