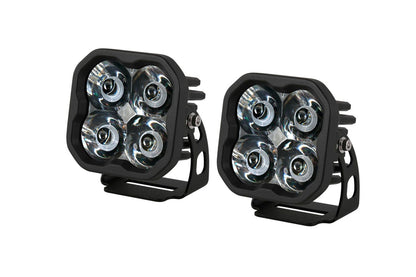

Diode Dynamics SS3 3-Inch LED Pods – Pair
High-Intensity Auxiliary LED Lights | Patent-Pending TIR Optics | Street-Legal SAE Beam Options

Take command of the dark with unmatched illumination. The Diode Dynamics SS3 3-Inch LED Pods deliver higher output intensity than any other 3-inch auxiliary light on the market. Engineered for maximum functionality, these compact pods combine rugged, real-world durability with custom-engineered optics to reshape your night-driving experience.

Whether you are building an off-road overland rig or upgrading your daily driver's factory fog lamps, the SS3 series provides powerful, focused light exactly where you need it most.

Key Features & Advanced Engineering

• Patent-Pending Custom TIR Optics: Standard reflectors and basic lenses lose up to 10% of their light output to internal scatter and glare. The SS3’s custom-molded Total Internal Reflection (TIR) optic serves as both the internal reflector and the main outer lens. This captures 100% of the light from the high-power LEDs and focuses it cleanly on target for drastically improved efficiency.

• Dual-Function Accent Backlighting: Stand out from the crowd with an integrated backlight feature available in your choice of Amber or Red. Unlike small indicator LEDs used by competitors, the SS3 backlight fully illuminates the entire TIR optic to create a bold, modern accent light when your main beams are turned off.

• Durable Powder-Coated Aluminum: Built to withstand harsh environments, the rugged aluminum housing is finished with an industrial powder coating that resists chipping, salt, and UV fading.

• Plug-and-Play Connectors: Features a custom-molded, weatherproof DT-type Deutsch-style connector on the rear casing. Each pair includes 6-inch bare-lead pigtails for a clean, reliable installation.

• USA Innovation: Proudly engineered, directly developed, and assembled in the USA using the absolute newest and brightest automotive LED technology.

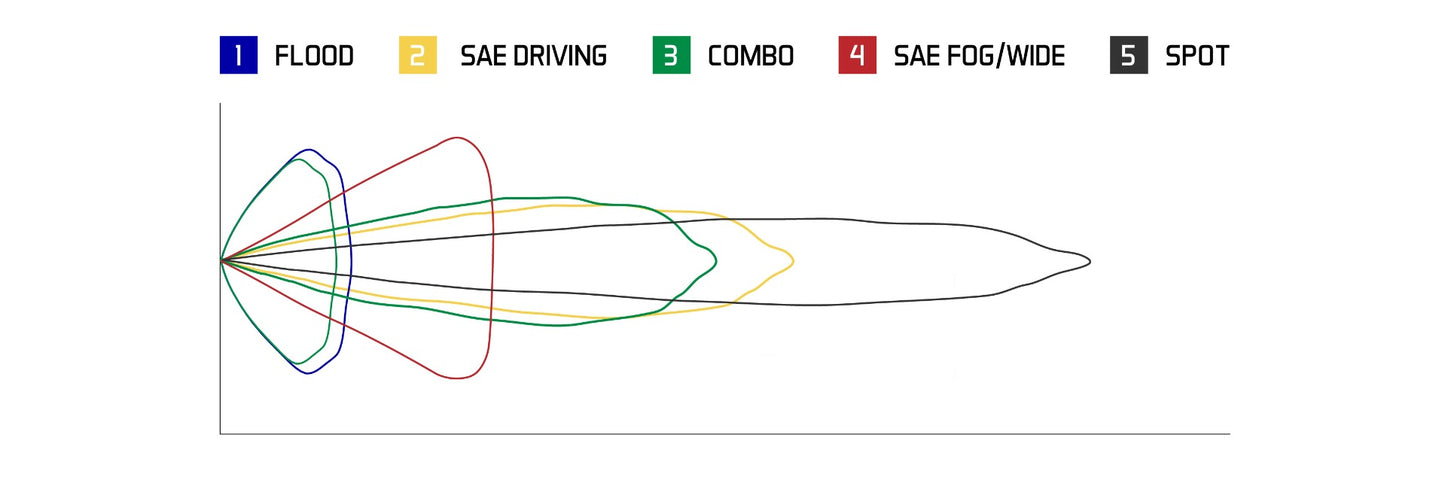

Multi-Functional, Optically Modeled Beam Patterns

All Stage Series beam patterns are engineered using advanced optical simulation modeling to shape the light throw into distinct, highly functional fields of view:

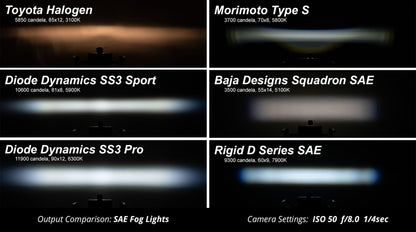

• SAE Fog Pattern: Utilizing our distinctive FineLine optic layout, this pattern delivers an extremely wide, high-intensity 80-degree spread. It serves as an elite upgrade for factory fog lamps, completely illuminating the immediate road surface.

• SAE Driving Pattern: Engineered to safely supplement your factory high beams. Rather than a narrow, unpredictable "spot," this option shines in a functional 18x8 degree rectangular spread to illuminate the road ahead at highway speeds.

• Combo Pattern: The ultimate all-rounder. This configuration features a flood optic on one side and a driving optic on the other, seamlessly blending downrange distance with wide peripheral coverage in a 65x25 degree block.

• Flood Pattern (60° x 60° Spread): Perfect for worksites, low-speed trail navigation, or backing down a boat ramp. It utilizes advanced pillow optics on the lens surface to provide a beautifully uniform, evenly distributed grid of light.

• Spot Pattern (6° Focused Beam): An unmodified, laser-focused beam casting raw light directly from the TIR optic. Pushing out an incredible 151,000 candela in the Sport configuration, it throws light a half-mile away to uncover distant hazards.

Street-Legal On-Road Use: When installed as a pair and aimed in accordance with your local regulations, the Driving White pattern meets SAE J581 standards as an auxiliary high beam, and the Fog pattern meets SAE J583 standards as a street-legal fog lamp.

Choose Your Color & Performance Tier

Cool White or Selective Yellow

• Cool White (6000K): A crisp, true cool white output that seamlessly matches modern OEM factory LED lighting arrays.

• Selective Yellow (3000K): A rich, deep yellow output explicitly designed to provide maximum contrast and reduce back-glare in inclement weather like heavy fog, rain, snow, or dust storms.

Sport, Pro, or Max Power Levels

• Sport Tiers: Uses high-intensity LEDs to deliver the best performance-to-cost value available on the market.

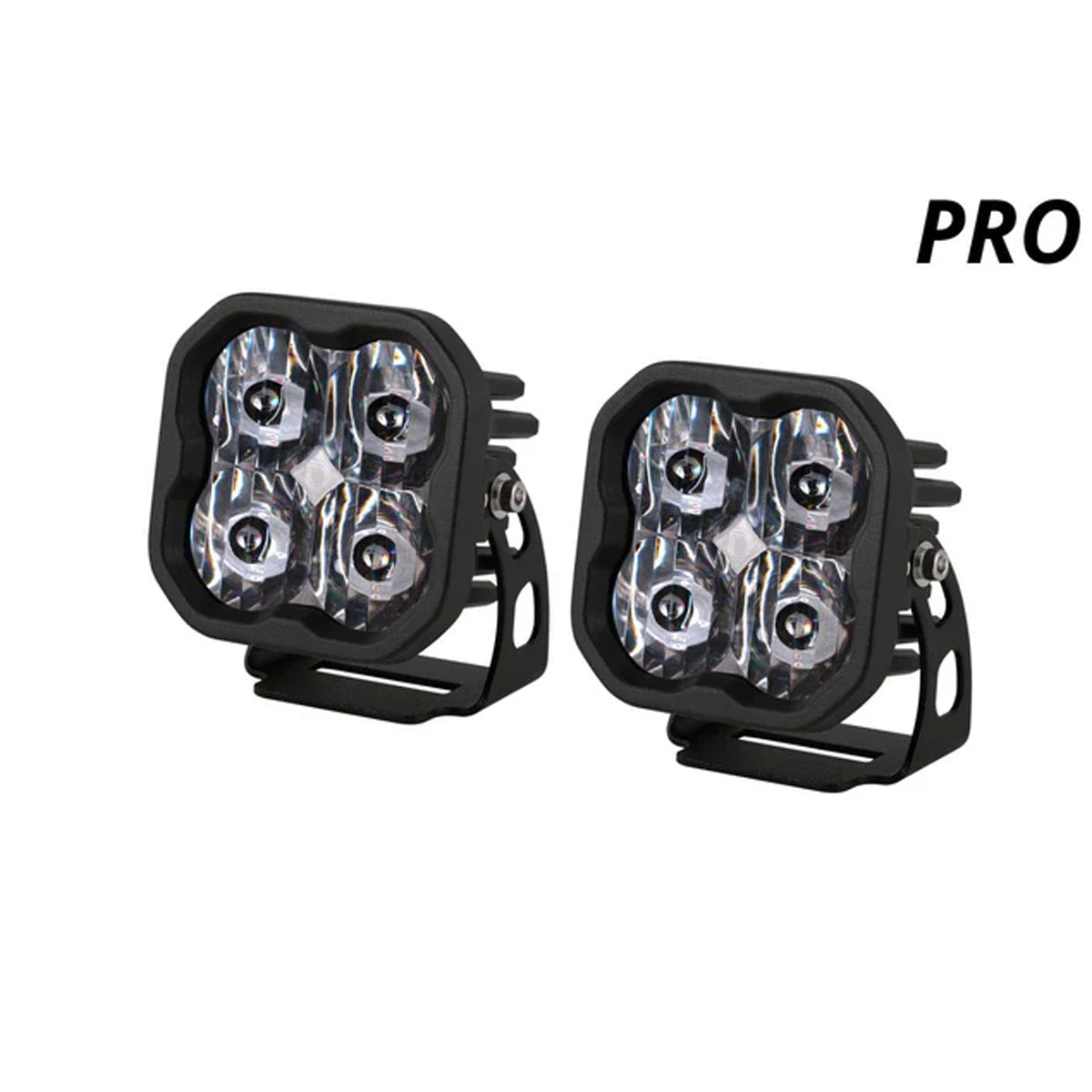

• Pro Tiers: Steps your output up in a massive way, delivering double the total power of the Sport model.

• Max Tiers: Built around cutting-edge, specialized automotive emitters to deliver extreme intensity and jaw-dropping raw output. This is the absolute peak of automotive lighting performance.

Product Specifications

Feature	Details
Housing Diameter	Compact 3-Inch Pod Profile
Housing Material	Heavy-Duty Powder-Coated Aluminum
Optic Architecture	High-Efficiency Total Internal Reflection (TIR) Matrix
Connector Style	Custom-Molded Deutsch DT Waterproof Array
Operational Limits	Extensively Torture-Tested from -40°F to 185°F
Testing Standards	SAE Compliant for Vibration, Moisture Intrusion, and Corrosion

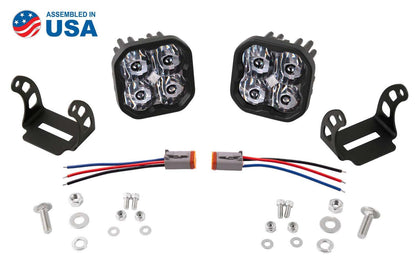

In The Box

• Two (2) Stage Series SS3 3-Inch LED Pods

• Two (2) Deutsch-Style Wire Pigtails

• Two (2) Heavy-Duty Mounting Brackets and Hardware

• Warranty: Premium Lifetime Warranty Protection

• Guarantee: 100% Satisfaction Guarantee




  NOTE: Wiring is NOT included and needs to be purchased separately

Transform your night driving and secure premium lighting performance. Order your Diode Dynamics SS3 LED Pods from Bikenbiker today!

Country of Origin: United States of America
Generic Name: Auxiliary Lights
Quantity: 2N
Country of Import: United States of America
Warranty: 5 years Limited Warranty
Best Use Before: 10 years from date of manufacture
