Stage Series 2" LED Pod Replacement Clear Lenses - Diode Dynamics

DD6630

M.R.P. ₹ 3,199.00 inclusive of all taxes
M.R.P. ₹ 3,199.00 inclusive of all taxes
Sale Contact Us to Order
Primary Optic

Out of stock

View full details

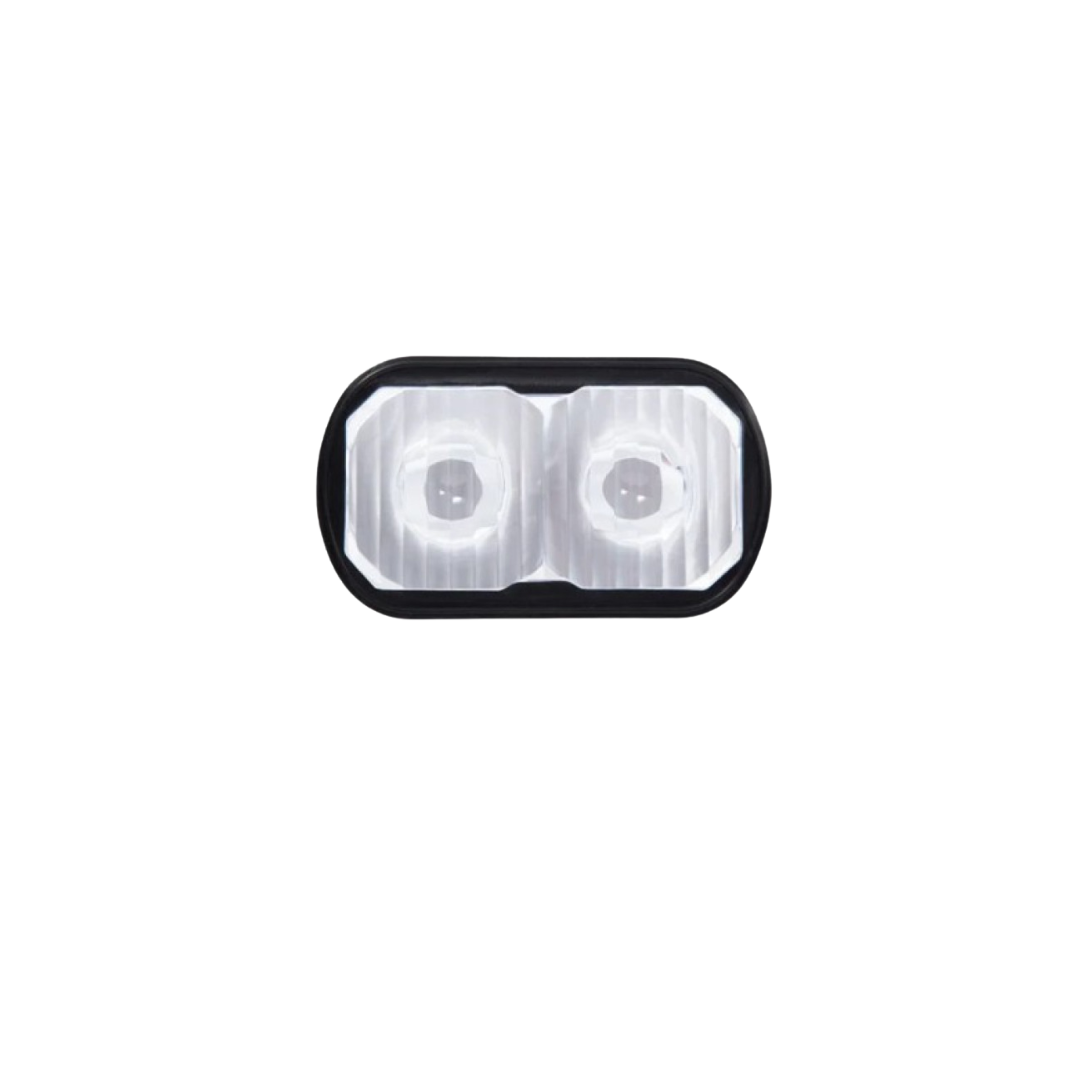

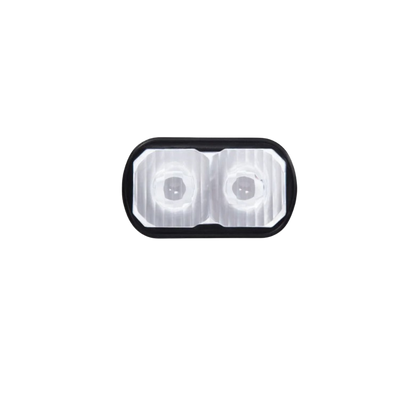

Stage Series 2" LED Pod Replacement Lense Clear - Diode Dynamics

*LENSE ONLY*

Features

  • Clear replacement lens for Stage Series 2" LED Pod
  • Made out of durable polycarbonate, with preinstalled o-ring seal
  • Advanced TIR optics provide high efficiency and focus
  • Available in SAE Driving, SAE Fog, Flood, Combo, or Spot beam patterns

Overview. This clear lens is a direct replacement for the original main lens in your Stage Series 2" LED Pod. It can be used to change both the color and output pattern, with a quick swap! Made of durable optical-grade polycarbonate, each lens comes with an integrated o-ring to maintain a watertight seal.

Colors. Stage Series 2" LED Pod lenses are available in clear material, producing white light, or a selective yellow filter. You can change the color of your lights by swapping out the lens, but please note that changing colors may not be perfect with these lenses, because different LEDs are used depending on the color of light you originally purchased.

If you purchased White pods originally, they have 6000K white emitters. Yellow Pods come with 4000K emitters. If you purchase these replacement clear lenses and install on a pod that was originally yellow, the result will be a 4000K white color, as the 4000K LEDs shine through the clear lens. It will not match standard white SSC2 pods, which are a 6000K white color. If 4000K white is what you're looking for though, this is a great way to achieve a custom color option!

Easy Swap. Changing the main lens in the SSC2 takes just a few seconds! Remove the four torx-head screws from the back frame, pull the old lens and o-ring assembly out, and put in your new lens, which comes with the o-ring preinstalled. Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean. The locating pins ensure correct alignment and rotation. Reinstall the four screws so they are very hand-tight, and you are ready to shine in your new color or beam pattern!

Warranty. Diode Dynamics Stage Series LED lighting comes with a 3-year replacement warranty, as well as an 8-year limited warranty. If you choose to disassemble and replace the lens on your SSC2 pod, you still keep your 8-year limited warranty intact. However, we may require the light to be sent in for any service and repair, rather than immediate replacement.

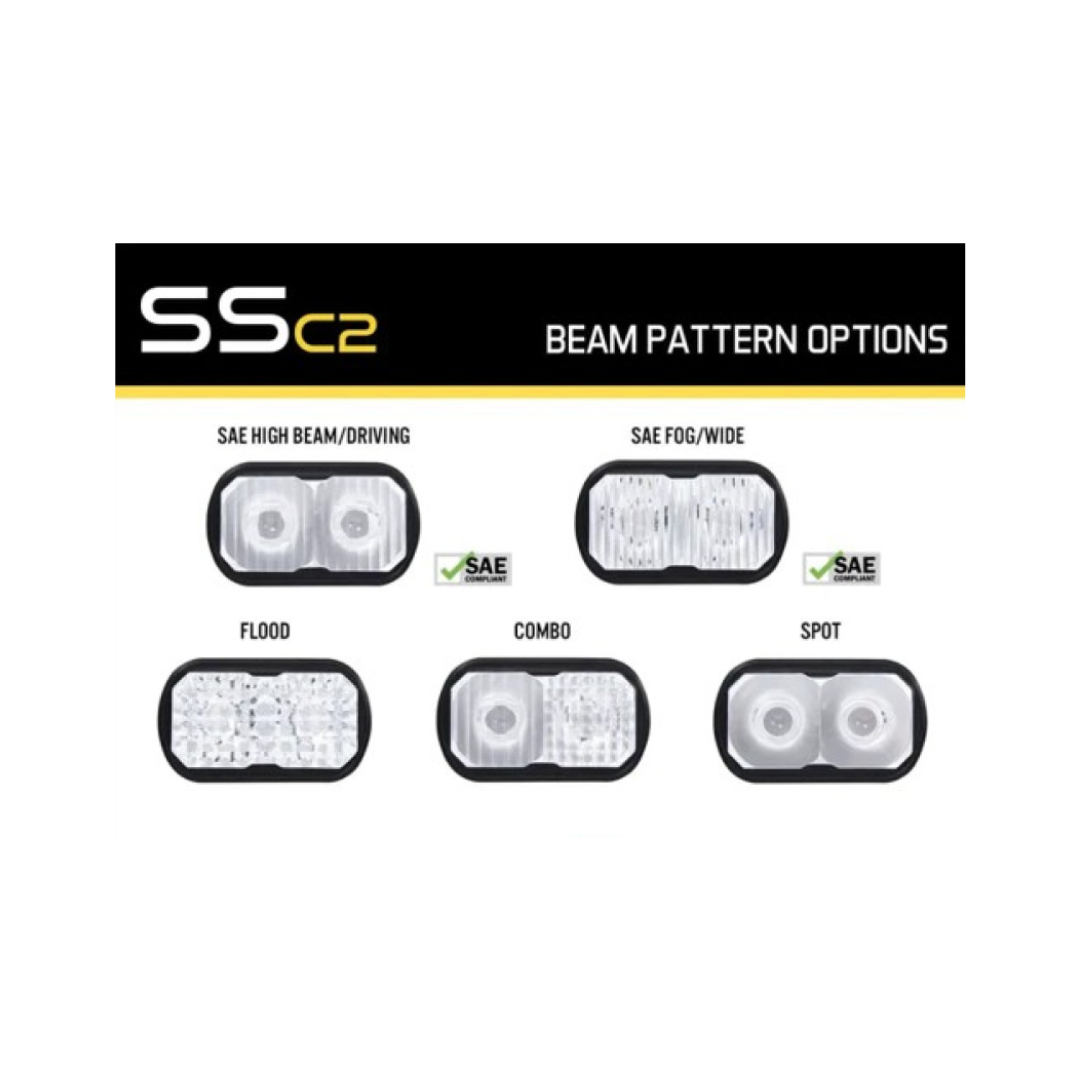

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you! Click here to learn more: Beam Pattern Overview Video.

SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 40x20 degree pattern. The SSC2 Pod features a single flood optic on one side with a single driving optic on the other.

Spot is an unmodified pattern, shining light directly from the TIR optic. The result is a highly focused 6-degree beam of light, perfect for directing light far into the distance.

Brand - Diode Dynamics,




Country of Origin: United States of America
Generic Name: Lighting Accessories
Quantity: 1N
Country of Import: United States of America
Warranty: 3 Years
Best Use Before: 10 years from date of manufacture
Importer Address: A&R O2O Commerce Pvt Ltd. Akshodaya, 259/31, 10th Cross, Wilson Garden, Bangalore 560027 Contact Customer Service Manager (at above address) Phone: +91 844 844 9050 Email: customercare@bikenbiker.com
